Macy-Pan HE-2202 34 Inch Hard Shell Hyperbaric oxygen Chamber 2.0 ATA

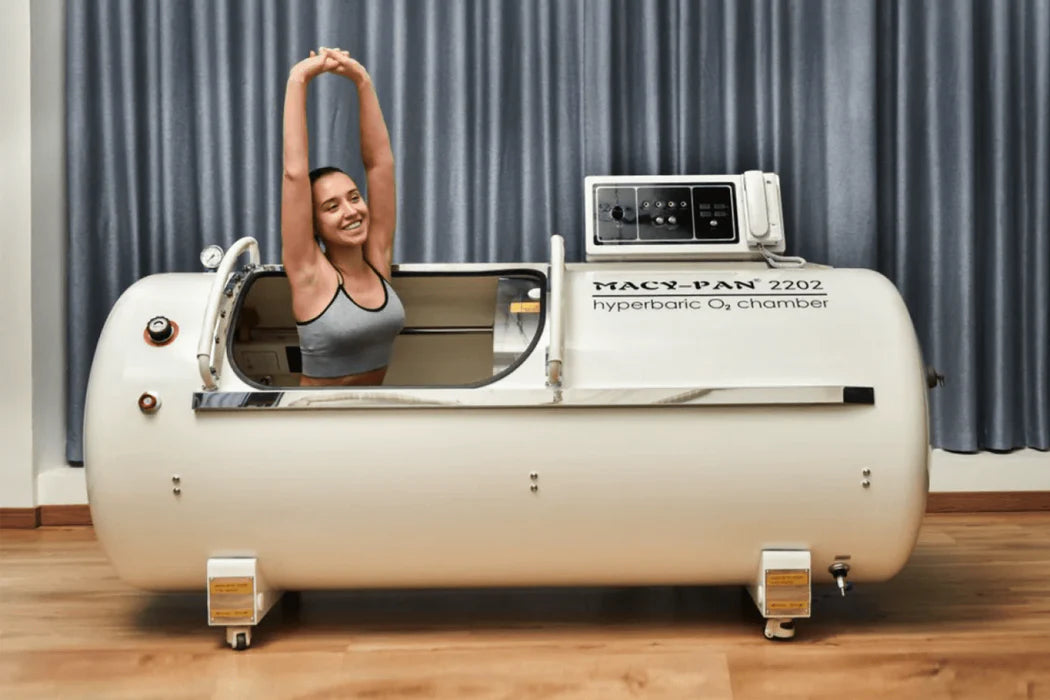

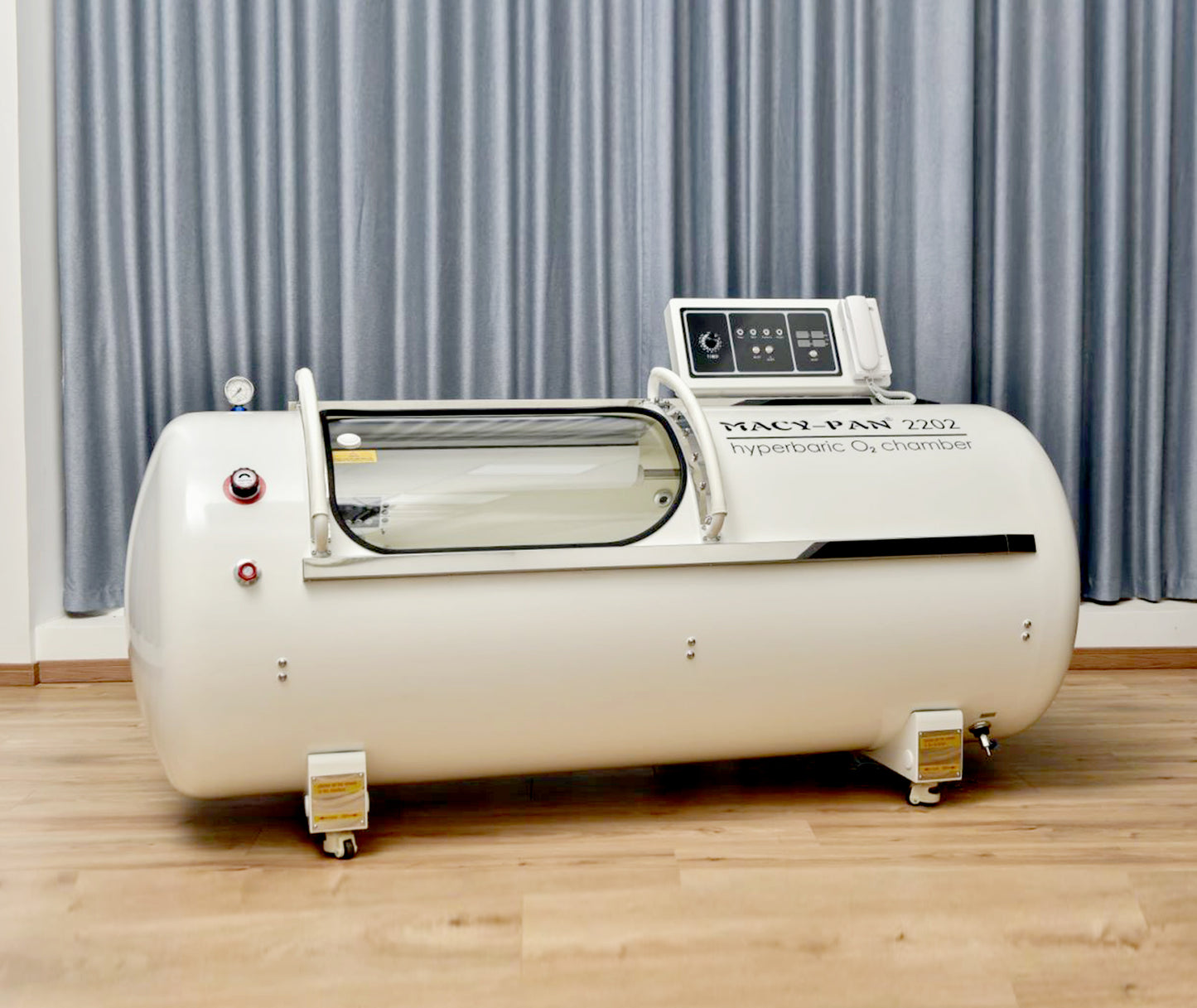

Macy-Pan HE2202 34-Inch Hard Shell Hyperbaric Oxygen Chamber

The Macy-Pan HE2202 34-Inch Hard Shell Hyperbaric Oxygen Chamber offers high-performance hyperbaric oxygen therapy at pressures up to 2.0 ATA. With its durable design, spacious interior, and advanced features, this chamber is perfect for clinical and home use.

Specifications:

Chamber:

• Dimensions:
  • Length: 88 inches
  • Diameter: 34 inches
• Weight: 396 lbs
• Material:
  • Frame: 2.5 mm thick 304-grade stainless steel
  • Window: 10 mm thick polycarbonate from Bayer Germany, mounted on heavy-duty steel rods with ball-bearing rollers.
• Pressure Capability:
  • Max Pressure: 2.0 ATA (15 PSI, 100 kPa)

Oxygen Concentrator:

• Dimensions: 30” L x 18” W x 28” H
• Weight: 176 lbs
• Power Requirements: 1200 watts
• Performance:
  • 15 LPM Total Oxygen Flow
  • 70 LPM Air Flow
  • ≥95% Oxygen Purity
  • Two continuous flow oxygen generators (no external tanks required)

Air Conditioning Unit:

• Dimensions: 13” W x 16” L x 22” H
• Weight: 67 lbs
• Power Requirements: 550 watts
• Temperature Range: -5°C to 30°C (water-based cooling system)

Total System:

• Weight: 572 lbs
• Power Requirements:
  • Standard: 110V-120V, 40 amps
  • Optional: 220V upon request

Key Features:

• Pressurization and Depressurization: Standard controls ensure smooth operation at desired pressure levels.

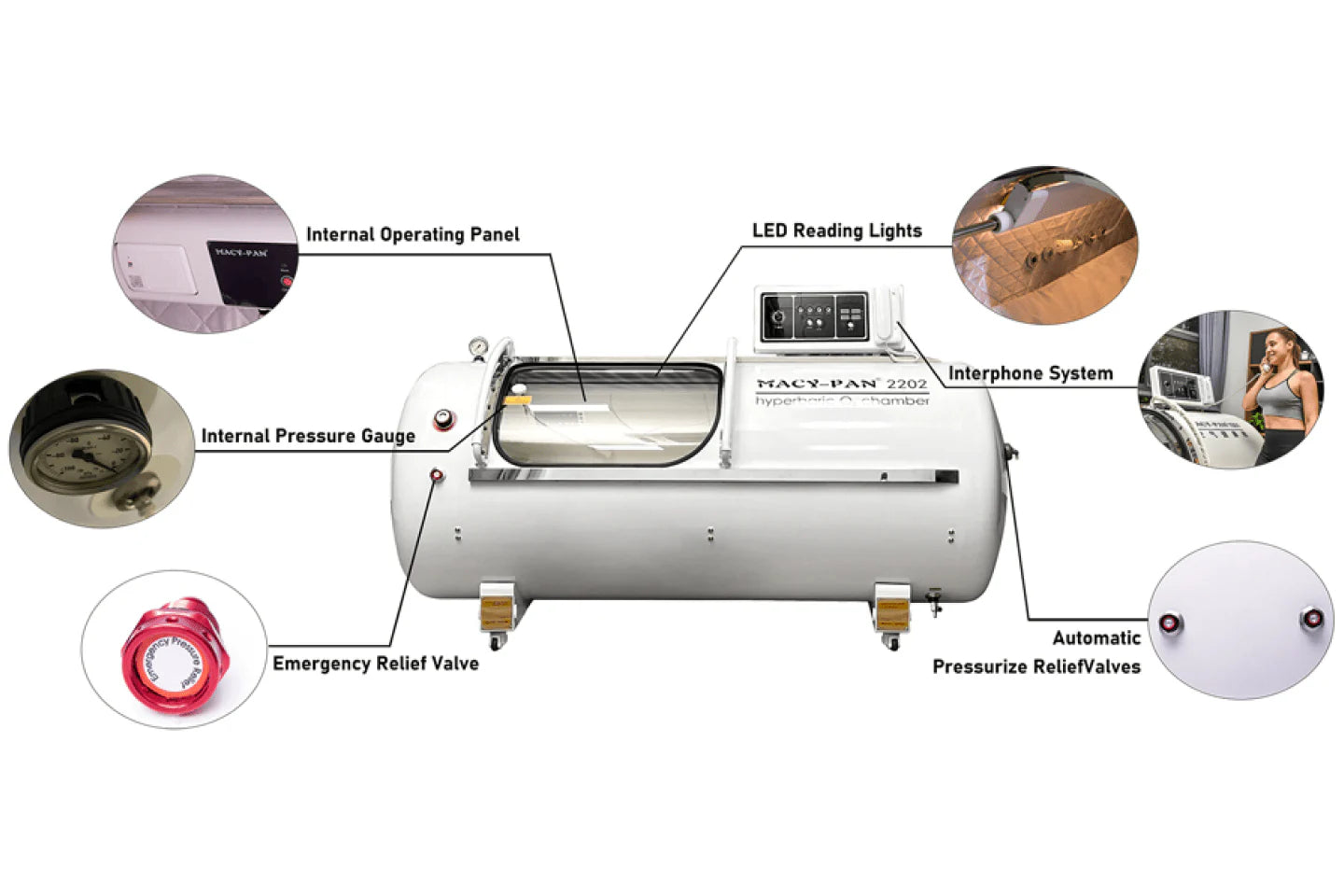

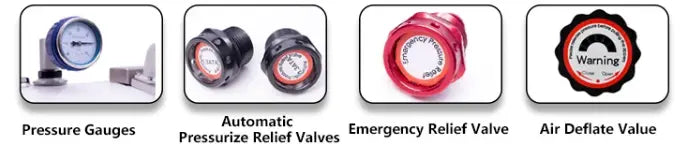

• Safety Systems:
  • Interior and exterior emergency pressure relief valves
  • Enhanced grounding system for safe operation in high-oxygen environments
• Comfort and Usability:
  • Interior lighting and alarm system
  • Auto-controlled session timer (up to 2 hours)
  • Can be operated independently without assistance
  • Enhanced cooling system ensures a comfortable environment
